Perf and PCB effect layouts: Spaceman Atlas III

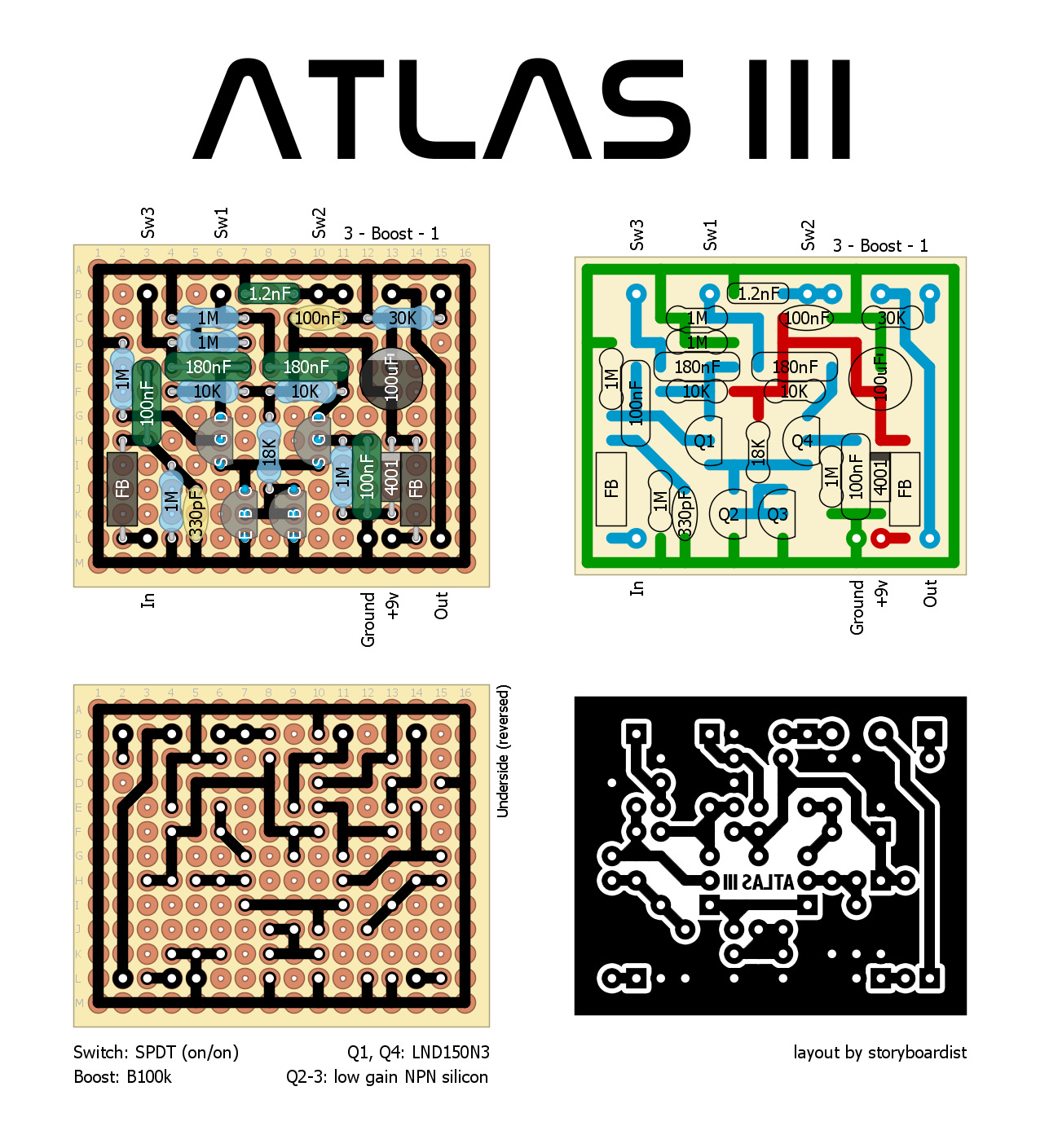

Hope everyone stays safe and healthy. Today’s layout is a unique preamp booster from Spaceman Effects, the Atlas III. It uses some FETs that I have never heard of on a couple of low gain silicon BJTs (use something in the 175-225 hFE range). The switch controls the phase of your signal (internal in the original). Scheme can be found Here for reference.
